J11T-16T Brass Gate Valve – PN16, Bolted Bonnet
Manually operated gate valve with threaded ends, designed for shut-off applications in water, air, and non-corrosive fluids
Body, bonnet, disc, and stem all manufactured from high-quality brass (CW617N); PTFE stem packing for reliable sealing
Bolted bonnet construction with brass gland nut and steel handwheel for safe and accessible operation
- Nominal pressure: PN16; shell tested to 2.4 MPa

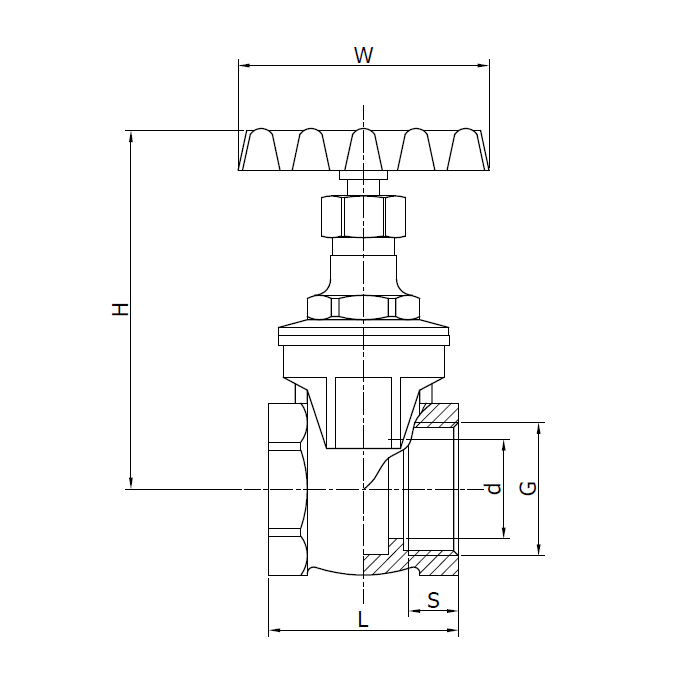

- Threaded ends – e.g. G1 1/4″ (DN32 sample shown)
- Seal tested: 1.76 MPa (water), 0.6 MPa (air)
- Suitable for general-purpose water, air, and oil systems
