Beskrivelse

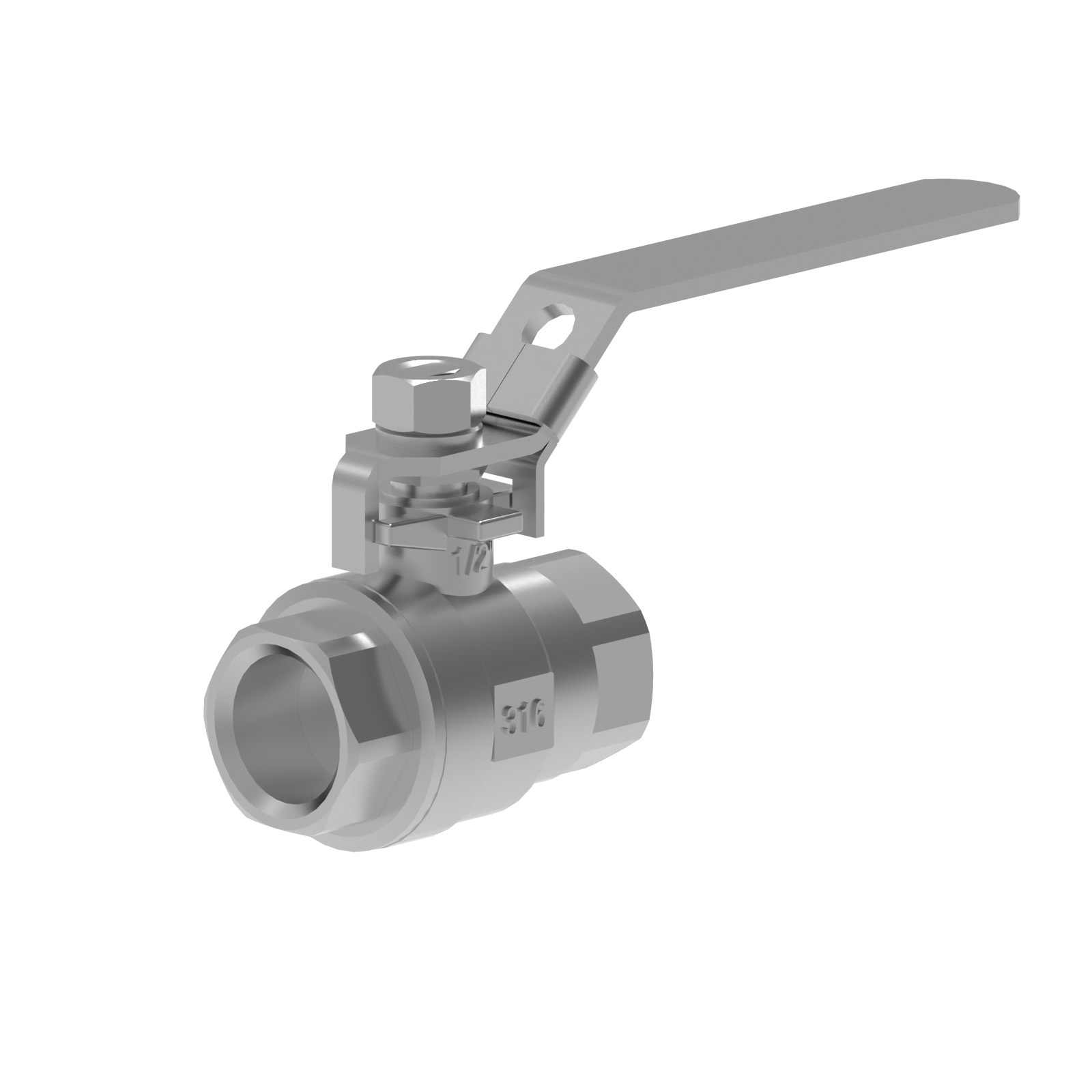

QIF Series 001‑C – Full Bore Threaded Ball Valve with Handle and V‑Packing
Robust two‑piece stainless steel valve with locking handle for manual shut‑off
V‑type stem packing with Viton O‑ring for excellent sealing and durability
Available in sizes DN8 (¼″) to DN100 (4″), full‑bore for minimal flow restriction
Pressure rated up to 1,200 psi depending on valve size
Ideal for water, oil, gas, and industrial utility systems
- 316 stainless steel body, cap, and ball; PTFE seat and packing
- Locking handle included on all variants
- BSPP threads standard (NPT optional)
- API598 tested; −25°C to +180°C operating temperature
Download Drawing
Download Technical manual EN
Download Technical manual NO
Download 3D Model
