SaniForce (Meat & Poultry)
Maximum Working Fluid Pressure
5:1 Ratio Piston Pumps
410 psi (28.3 bar, 2.8 Mpa)
6:1 Ratio Piston Pumps
650 psi (44.8 bar, 4.5 MPa)
12:1 Ratio Piston Pumps
1450 psi (100.0 bar, 10 MPa)

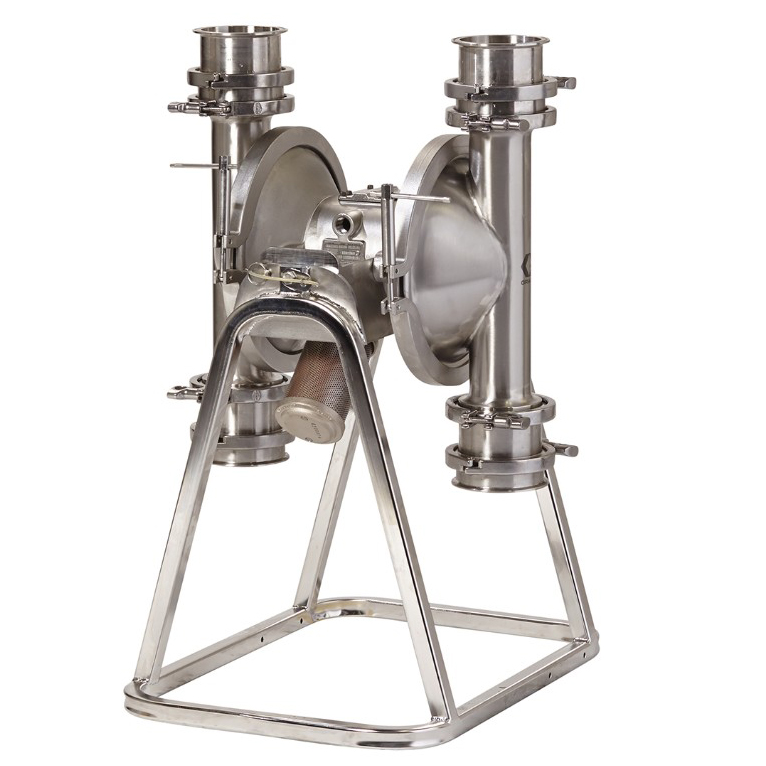

Diaphragm Pumps
120 psi (8.2 bar, 0.8 MPa)
Maximum Air Inlet Pressures
Piston Pump Ram Packages
100 psi (6.9 bar, 0.7 MPa)
Diaphragm Pump Ram Packages
120 psi (8.0 bar, 0.8 MPa)
Ram
100 psi (6.9 bar, 0.7 MPa)
6:1 and 12:1 Ratio Piston Pumps
100 psi (6.9 bar, 0.7 MPa)
5:1 Ratio Piston Pumps
80 psi (5.5 bar, 0.6 MPa)
Diaphragm Pumps
120 psi (8 bar, 0.8 MPa)
Air Inlet Size
Enclosed Controls
1/2 npt(f)
Exposed Controls
3/4 npt(f)
Maximum Ram Package Operating Temperature
5:1 Ratio Piston Pump Ram Packages
140°F (60°C)
All Other Ram Packages
150°F (66°C)
Maximum/Minimum Drum Sizes
Maximum Drum ID
24 in (61 cm)
Minimum Drum ID — straight sided
19.4 in (49 cm)
Minimum Drum ID — tapered`
19.0 in (48 cm)
Maximum Drum Height
40.75 in (104 cm)
Wetted Parts
Inflatable Seal
Neoprene
Ram (plate, fittings, gaskets)
300–Series stainless steel, Buna-N, and polypropylene
5:1 Ratio Piston Pumps (see pump manual)
Stainless steel, Buna-N, FKM, PTFE and UHMWPE. Priming piston pumps also have polychloroprene and nylon. Model 24F197 also has silicone.
6:1 Ratio Piston Pumps (see pump manual)
Stainless steel, buna-N, polychloroprene, nitrile, nylon, and UHMWPE. Certain models have PTFE packings.
12:1 Ratio Piston Pumps (see pump manual)
Stainless steel, acetal, nitrile, PTFE, UHMWPE
Diaphragm Pumps (see pump manual)
316 stainless steel, Santoprene, Buna-N, fluoroelastomer, EPDM, weighted CR, weighted polychloroprene, and PTFE
