Beskrivelse

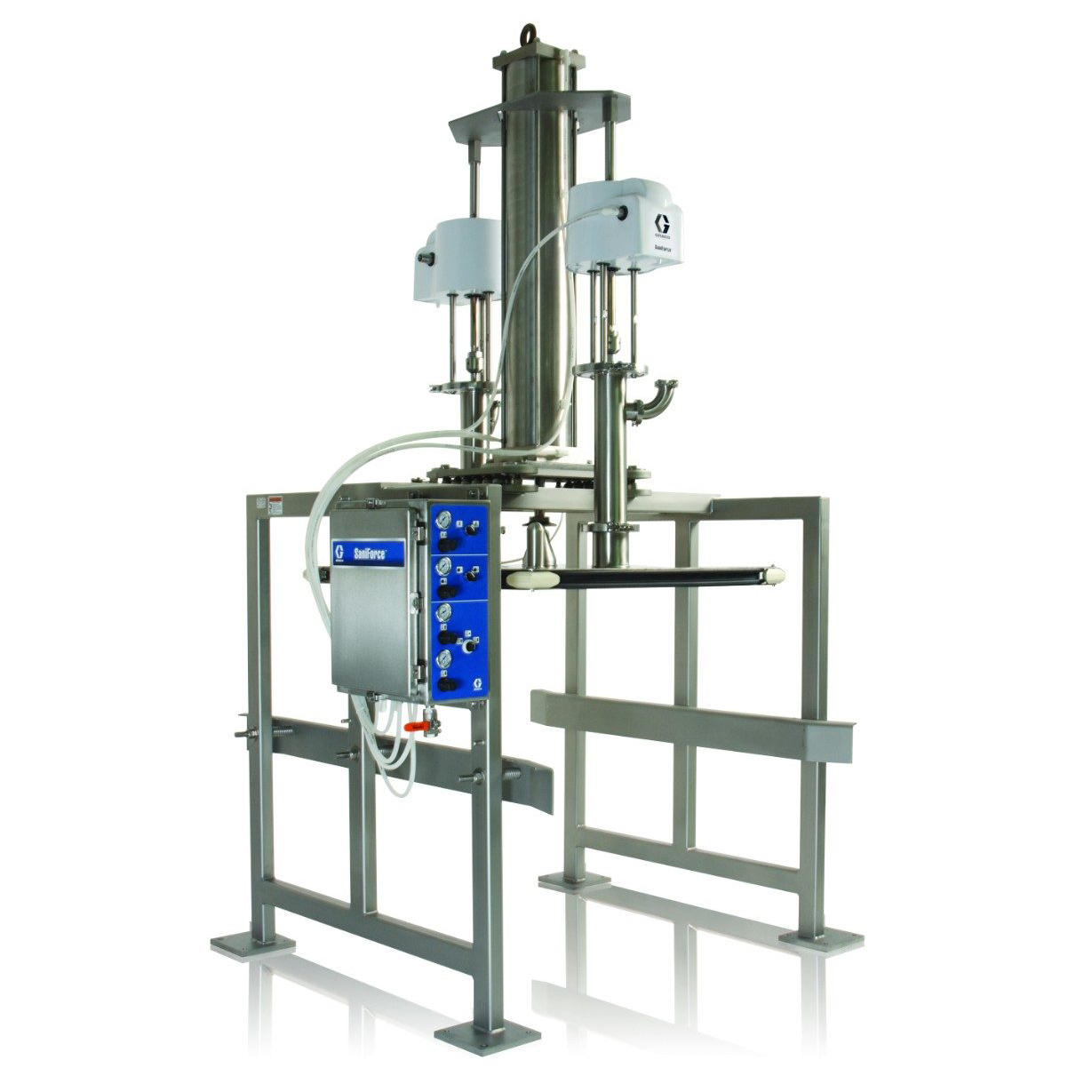

Graco SaniForce container sytemer er godkjent for næringsmiddelindustrien og beregnet for å pumpe produkter med medium til høy viskositet direkte fra sine 1000l containere uten at man trenger å påvirke (tynne/varme) produktene for å løse denne prosessen.
SANIFORCE 6:1
Double Ball Pump
Max. fluidpressure
41 bar
(4.1 MPa-600 psi)
Max. flow@ 60 cpm*
15.1 l/min
(4.0 gpm)
Viscosity rangeof package
up to 75,000 cps
Max. inletair pressure
7 bar
(0.7 MPa-100 psi)
Air inlet size(enclosed, exposed)
1/2 npt(f),
3/4 npt(f)
Evacuation efficiency
<= 99%
Instruction manual
3A0591
SANIFORCE 3150 HS
High Sanitation Double Diaphragm
Max. fluidpressure
8.4 bar
(0.84 MPa-120 psi)
Max. flow@ 60 cpm*
234 l/min
(60 gpm)
Max. flow@ 100 cpm*
390 l/min
(100 gpm)
Max. inletair pressure
8.4 bar
(0.84 MPa-120 psi)
Air inlet size(enclosed, exposed)
1/2 npt(f),
3/4 npt(f)
Evacuation efficiency
<= 99%
Instruction manual
3A0591
