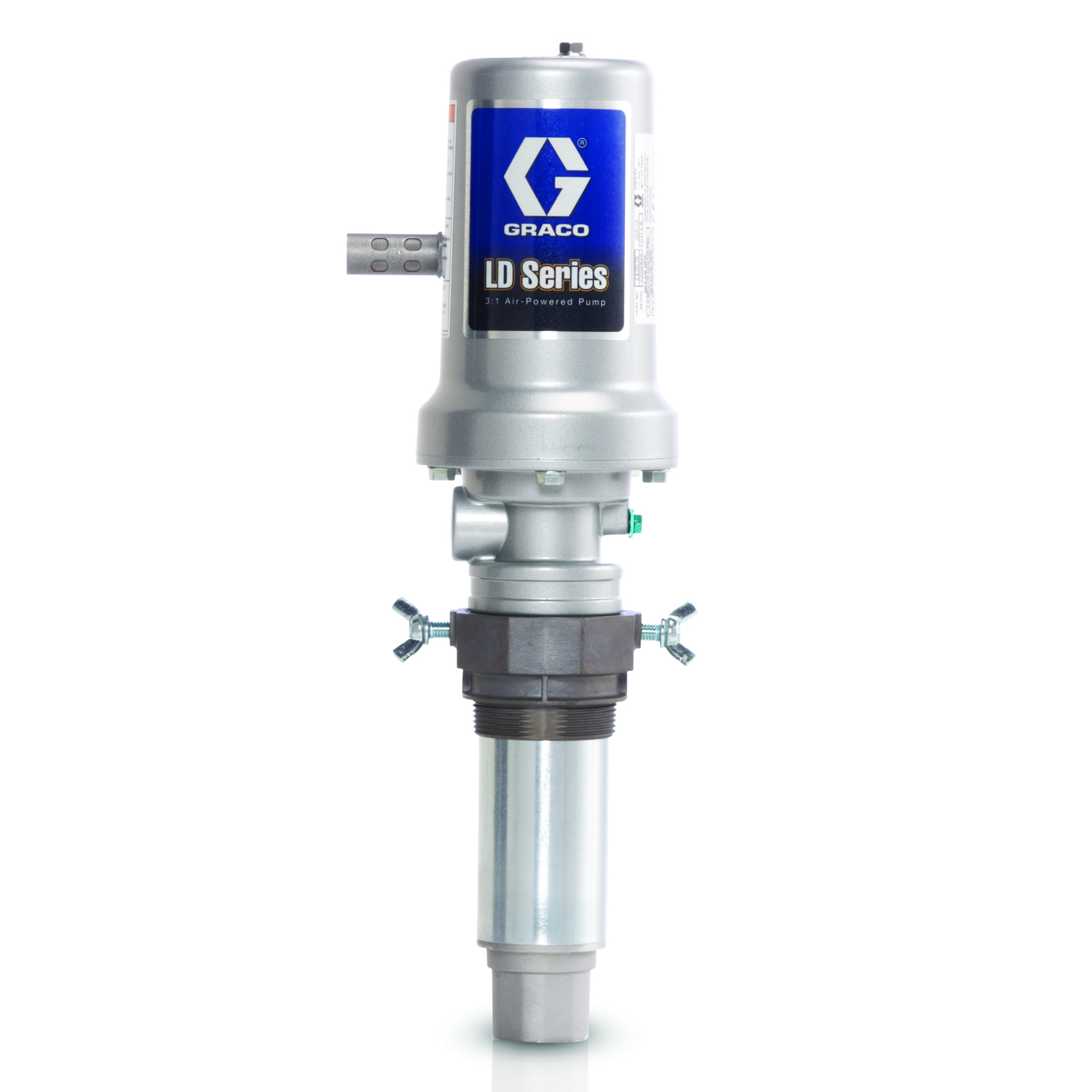

LD Series 3:1
Fluid Pressure Ratio: 3:1
Air Motor Effective Diameter: 3 in (76.2 mm)
Maximum Fluid Working Pressure: 450 psi (31 bar / 3.1 MPa)
Approximate Free Flow Rate @ 100 psi: 7.8 gal/min (30 liters/min)
Output per Cycle: 131 cc
Approximate Air Use and Flow @ 100 psi (80 cpm): 18 scfm @ 2.8 gpm (0.51 m³/min @ 10.6 lpm)
Air Inlet: 1/4 in
Fluid Inlet: 1 in
Fluid Outlet: 1/2 in
Air Operation Range: 20 psi to 150 psi (1.37 bar to 10.3 bar)
Maximum Recommended Pump Speed: 120 cpm
Cycles per Gallon (liter) / Pound (Kg): 29 (7.7)
Wetted Parts: Zinc plated carbon, steel, aluminum, nitrile, polyurethane, nickel plated aluminum
Sound Pressure Level: 72.9 dB(A)
Sound Power Level: 82 dB(A)
Approximate Weight: 7 lb (3.2 kg)
Instruction Manual: 3A1334
