Beskrivelse

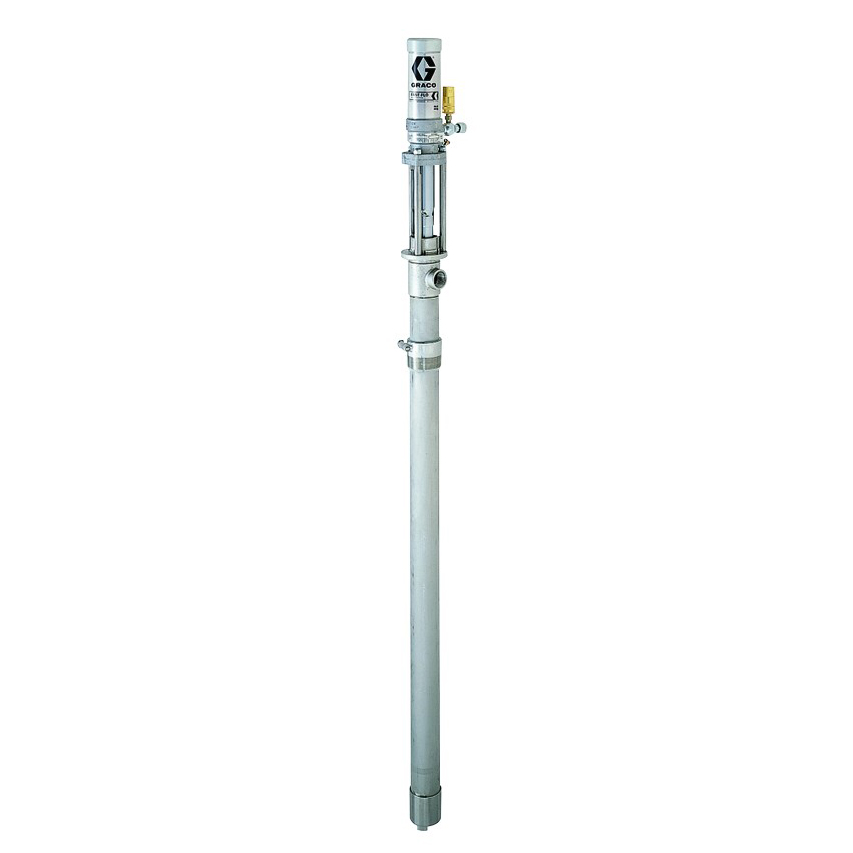

Air-Operated Piston Transfer Pump with maximum delivery up to 5 gpm (19 lpm) and maximum fluid working pressure up to 180 psi (12 bar). Ideal for lower viscosity fluids.
Fast-Flo 1:1
Maximum fluid working pressure: 12.4 bar (1.24 MPa – 180 psi)
Maximum pump speed: 100 cpm
Pump cycles per liter: 6.5
Maximum air input pressure: 12.4 bar (1.24 MPa – 180 psi)
Maximum operating temperature: 49°C (120°F)
Typical sound level: 72 dBa
Air inlet: 1/4 npt (f)
Fluid outlet: 3/4 npt (f)
Weight: 9.07 kg (20 lbs) Drum
4.99 kg (11 lbs) Stubby
Maximum inbound air pressure: 12.5 bar, 1.25 Mpa (180 psi)
Weight: 1.8 kg (4 lb)
Wetted Materials: Neoprene
304 Stainless Steel
Leather
Carbon Steel
PTFE
Polyethylene
Fast-Flo Air Motor
Maximum inbound air pressure: 12.5 bar, 1.25 Mpa (180 psi)
Air inlet size: 1/4 npt(f)
Effective piston area: 10 sq cm (1.6 sq in)
Effective piston diameter: 35.2 mm (1.4 in)
Stroke length: 101.6 mm (4 in)
Weight: 1.8 kg (4 lb)
Part Numbers:
226940: Drum/CS/SST (UL, CE) – T&L
226941: Drum/CS/SST (UL, CE) – PE
226942: Drum/SST (UL, CE) – PE
226943: Stubby/CS/SST (UL, CE) – L
226944: Stubby/CS/SST (UL, CE) – PE
226945: Stubby/SST (UL, CE) – PE
226946: Drum/CS/SST (CE) – T
237129: Drum/SST (CE) – T
237130: Stubby/CS (CE) – L
237131: Stubby/CS (CE) – T
237132: Stubby/CS (CE) – T
237133: Drum/CS (CE) – L
237134: Drum/CS (CE) – T
Forklaringer:
N = Neoprene SST = 304 Stainless Steel
L = Leather CS = Carbon Steel
T = PTFE PE = Polyethylene
