LT Butterfly valve DN100 LUG PN10

Name: LT Butterfly valve DN100 LUG PN10
SKU: QIF-111-NDA230-0100
Availability: BackOrder

Nutork Pneu Double Acting Actuator NKD-075

Beskrivelse

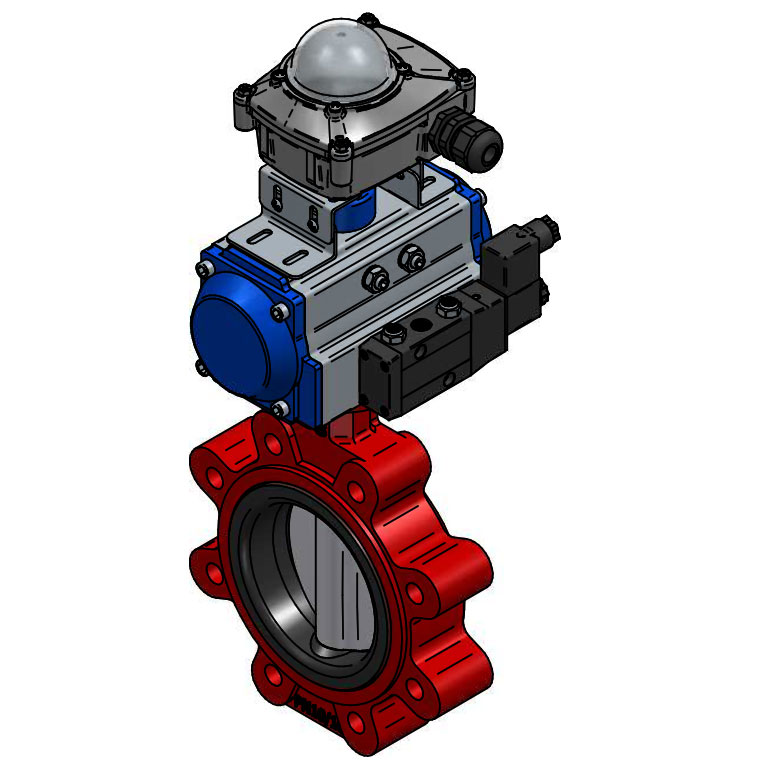

DN100 PN10 Lug Butterfly Valve with Nutork Pneumatic Double Acting Actuator NKD-075 incl. 5/2 Solenoid 24VDC/230VAC and Switchbox CP10.

Size	100mm – 4"
Pressure Rating	10 bar
Connection	Lug
Flange Drilling	PN10
Body Material	Ductile Iron
Body Material Std.	GGG 40
Face To Face Distance (Mm)	52
Trim Material	Ductile Iron/Plastic
Trim Material Std.	GGG 40/Nylon 11
Spindle Material	Stainless Steel
Spindle Material Std.	SS 416
Seat Material Std.	EPDM
Features	Valve with Actuator, Solenoid and Switchbox
Sector	Industry
Spindle Top	Square
Spindle Top Size	SQR 14
Top	F07
