LT Butterfly valve DN350 LUG PN10

Name: LT Butterfly valve DN350 LUG PN10
SKU: QIF-111-NDA-0350B

Nutork Pneu Double Acting Actuator NKD-190

Beskrivelse

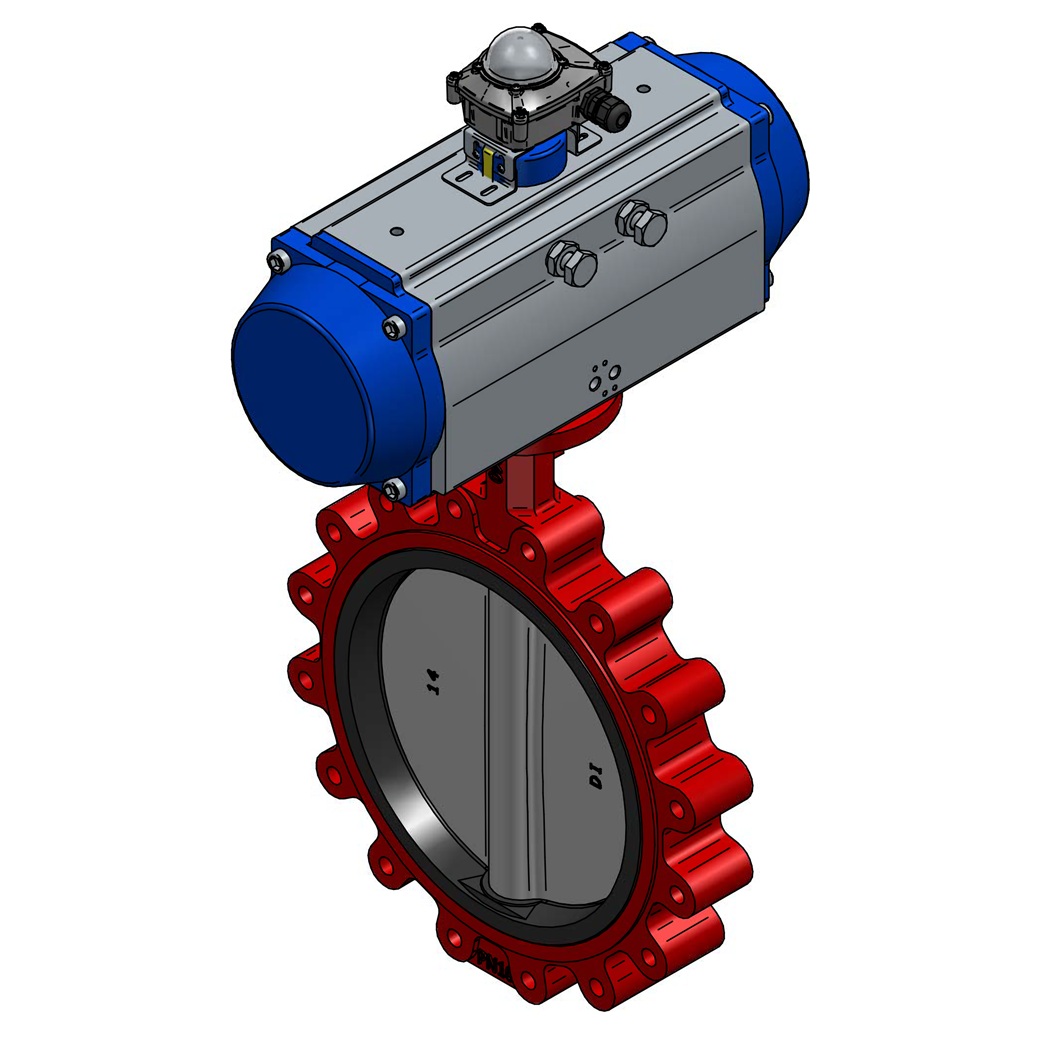

DN350 PN10 Lug Butterfly Valve with Nutork Pneumatic Double Acting Actuator NKD-190 and Switchbox CP10.

Flange Drilling	PN10
Face To Face Distance (Mm)	78
Trim Material	Ductile Iron/Plastic
Trim Material Std.	GGG 40/Nylon 11
Pressure Rating	10 bar
Spindle Material	Stainless Steel
Spindle Material Std.	SS 416
Seat Material Std.	EPDM
Features	Valve with Actuator and Switchbox
Sector	Industry
Spindle Top	Square
Spindle Top Size	SQR 27
Size	350mm – 14"
Connection	Lug
Body Material	Ductile Iron
Body Material Std.	GGG 40
Top	F12/F14
