LT Butterfly valve DN125 LUG PN10

Name: LT Butterfly valve DN125 LUG PN10
SKU: QIF-111-NDA-0125

Nutork Pneu Double Acting Actuator NKD-092

Beskrivelse

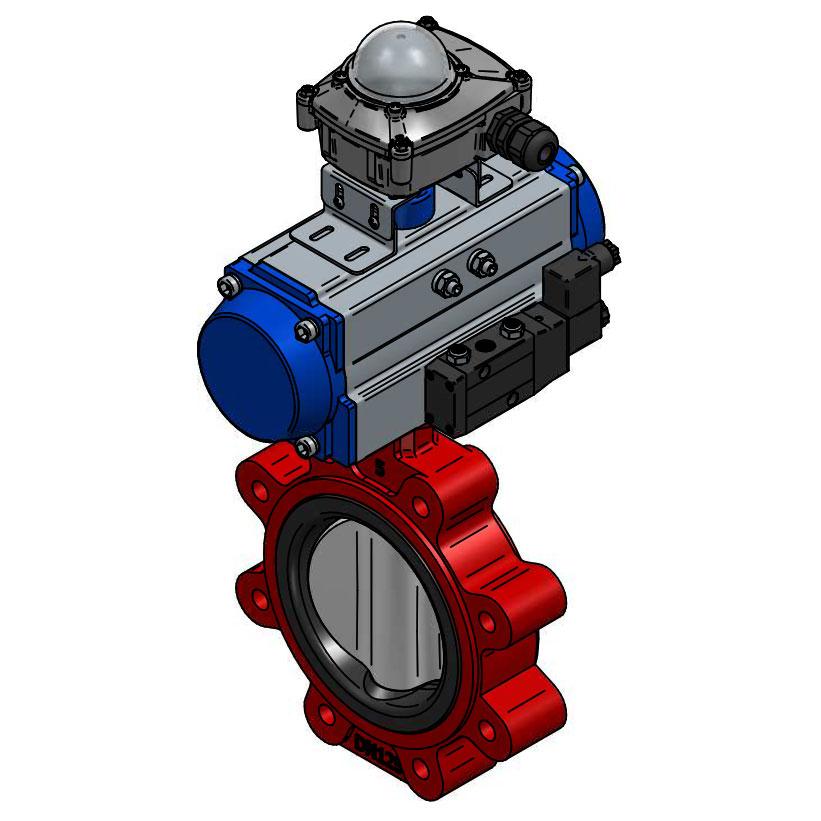

DN125 PN10 Lug Butterfly Valve with Nutork Pneumatic Double Acting Actuator NKD-092 incl. 5/2 Solenoid 24VDC and Switchbox CP10.

Flange Drilling	PN10
Face To Face Distance (Mm)	56
Trim Material	Ductile Iron/Plastic
Trim Material Std.	GGG 40/Nylon 11
Pressure Rating	10 bar
Spindle Material	Stainless Steel
Spindle Material Std.	SS 416
Seat Material Std.	EPDM
Features	Valve with Actuator, Solenoid and Switchbox
Sector	Industry
Spindle Top	Square
Spindle Top Size	SQR 14
Size	125mm – 5"
Connection	Lug
Body Material	Ductile Iron
Body Material Std.	GGG 40
Top	F07
