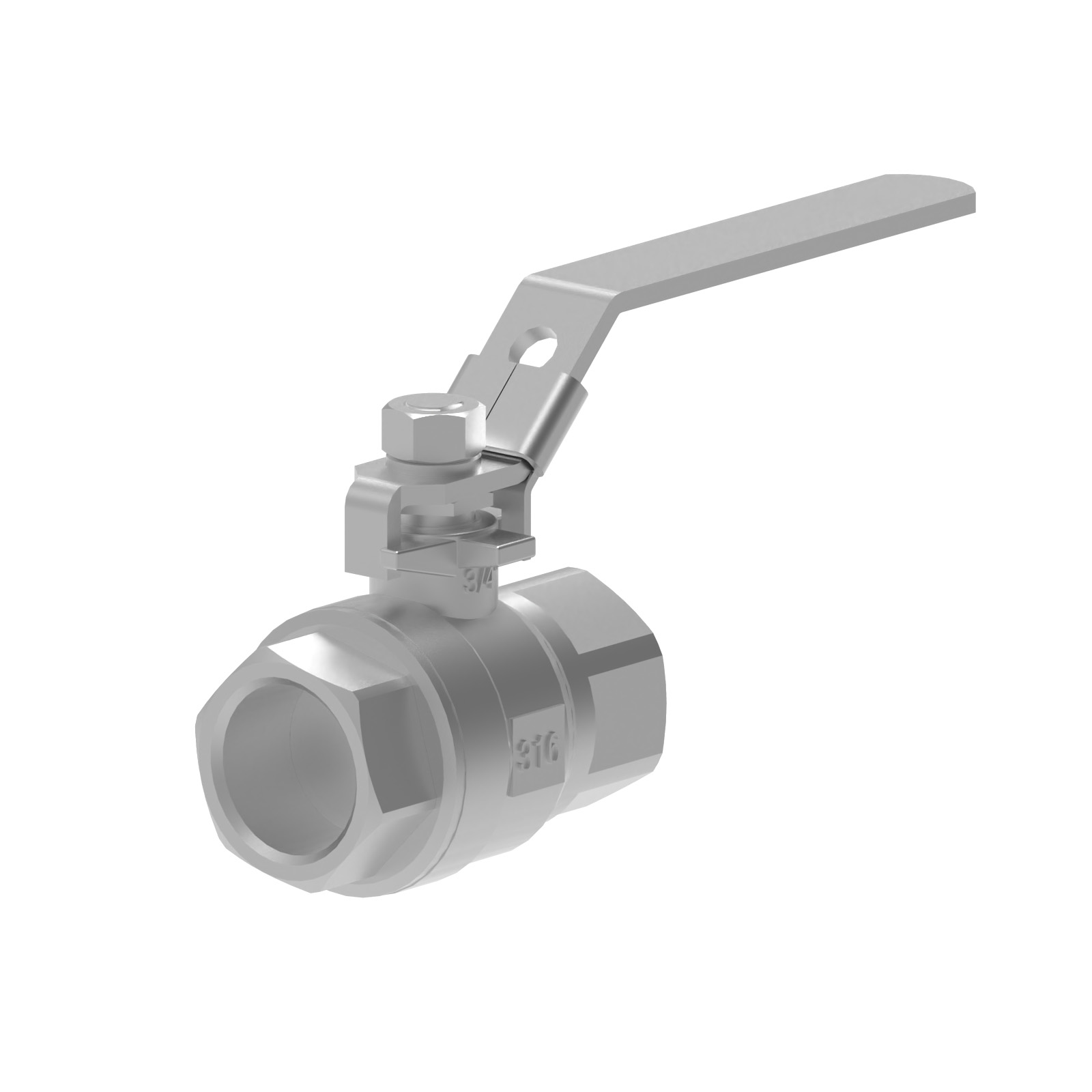

QIF Series OX1 – Full Bore Threaded Ball Valve for Oxygen Service
Two-piece bare stem ball valve crafted from high-quality stainless steel (CF8M body, 316 ball)
Thoroughly cleaned, degreased, and certified for use with oxygen and other high-purity media
Minimal pressure loss, robust sealing, and full-bore design for reliable industrial performance
Special care is required during installation to prevent contamination
- DN8–DN100 sizes available with BSPP threads (NPT optional)
- Oxygen-cleaned to industry standards, free of hydrocarbons and grease
- PTFE seat and packing; Viton O-ring with V-packing design
- Routine monthly cycling and pressure relief recommended for safe maintenance
Download Drawing
Download Technical manual EN
Download Technical manual NO
Download 3D Model
