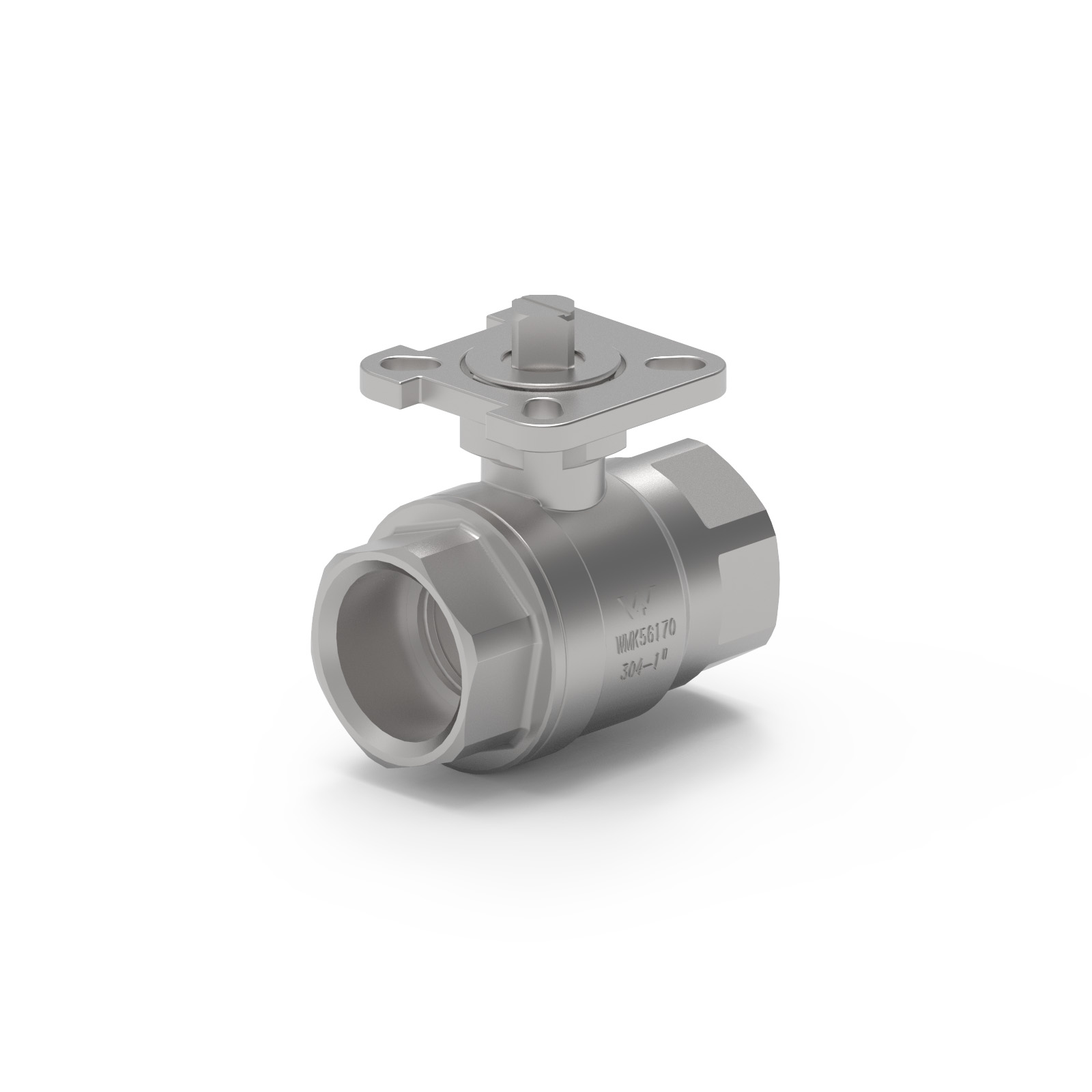

QIF 001‑B Series – Full‑bore threaded ball valve with ISO 5211 actuator top, no handle
Two‑piece stainless steel valve (CF8M body, SS316 ball), designed for threaded BSPP (or NPT) installations
Bare stem actuator version with ISO 5211 mounting pad; no handle included, ideal for direct mounting
Blow‑out‑proof stem, V‑type PTFE packing, Viton O‑ring, and floating ball design
Suitable for industrial fluids like water, oil, and gas
- Available in sizes DN8 (¼″) to DN100 (4″)
- Full‑bore design with minimal flow restriction; Kv data per manual
- Pressure-rated up to 1 200 psi; operating temperature −25 °C to +180 °C
- Tested to API 598; actuator torque values per datasheet
