SIKK.VENTIL 3.1C DIN FL. DN50

GS-C 25/STAINLESS Ø 32, STANDARD: 10-19 BAR

Produktnummer: PER00372
GTIN: 7053031170993
NOBB: I/A
Kategori:
På lager 2 stk.

Beskrivelse

Beskrivelse

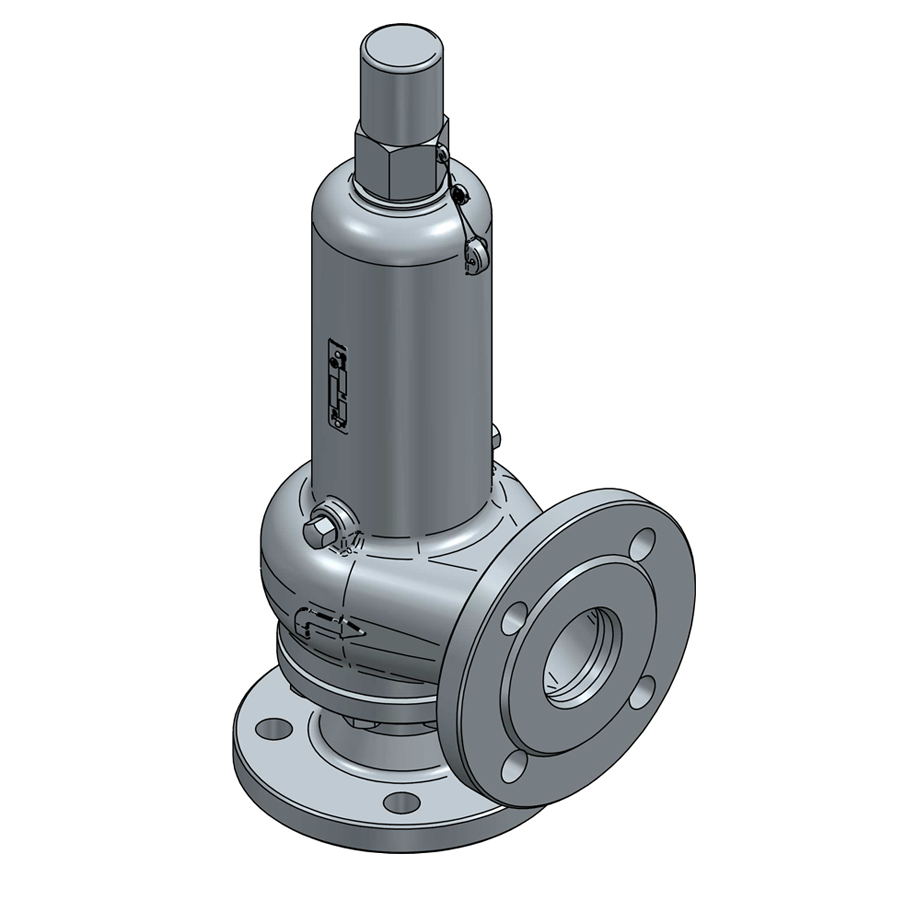

PER00372 valve is Conventional type with inlet of 2in – 50mm and outlet of 2in – 50mm. Valve has Flanged RF connection. Body is Carbon Steel and trim is Stainless Steel. Valve has Closed Cap and can be used -60 to 350°C temperature range. PER00372 valve are approved with PED.

Download Drawing
Download Datasheet

Spesifikasjoner

Tilleggsinformasjon

Connection

Flange Drilling

Body Material

Body Material Std.

Features

Certificates

Inlet Size

Medium

Outlet Size

Sector

Serie

Set Pressure

Temperature Range
