4" ANSI 150 FB BALL TRUNNION

4″ ANSI 150 FB BALL TRUNNION

F316L/316 RPTFE FB L-229mm torq 192 nm

Produktnummer:	OMV-100-F00-0100
GTIN:	7053031168914
NOBB:	I/A
Kategori:	Kuleventiler
Må bestilles	0 stk.

Beskrivelse

Beskrivelse

OMV-100-F00-0100 is Flanged Ball Valve with size of 100mm – 4″ and ANSI 150 Pressure. Body Material is Stainless Steel SS 316 (CF8M).

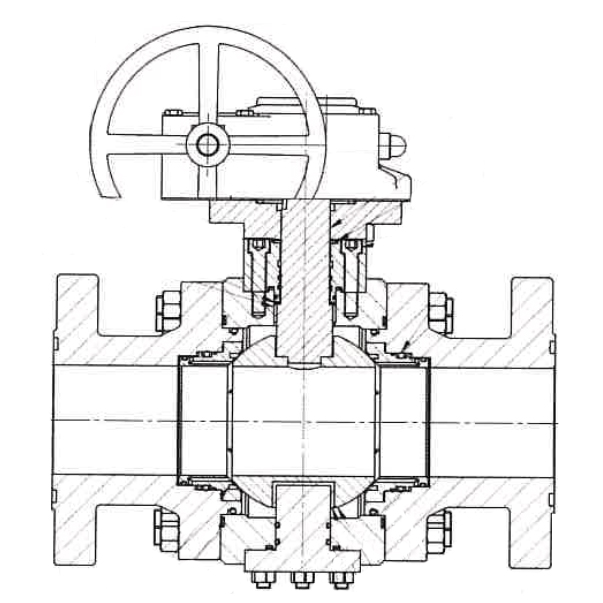

Download Drawing
Download Other Documents

Spesifikasjoner

Tilleggsinformasjon

Valve Type	Trunnion
Pressure Rating	20 bar
Flange Drilling	ANSI 150
Face To Face Distance (Mm)	229
Trim Material	Stainless Steel
Trim Material Std.	SS 316 (CF8M)
Spindle Material	Stainless Steel
Seat Material Std.	RPTFE (RTFE)
Fire Safe	Certified
Sector	Industry
Serie	OMV-BAV-3P-F-TM-CL 150
Spindle Top	Double D
Spindle Top Size	DD 27 x 19
Trim Type	Full Bore
Spindle Material Std.	SS 316 (CF8M)
Size	100mm – 4"
Connection	Flanged
Body Material	Stainless Steel
Body Material Std.	SS 316 (CF8M)
Certificates	PED
Top	F07
