Beskrivelse

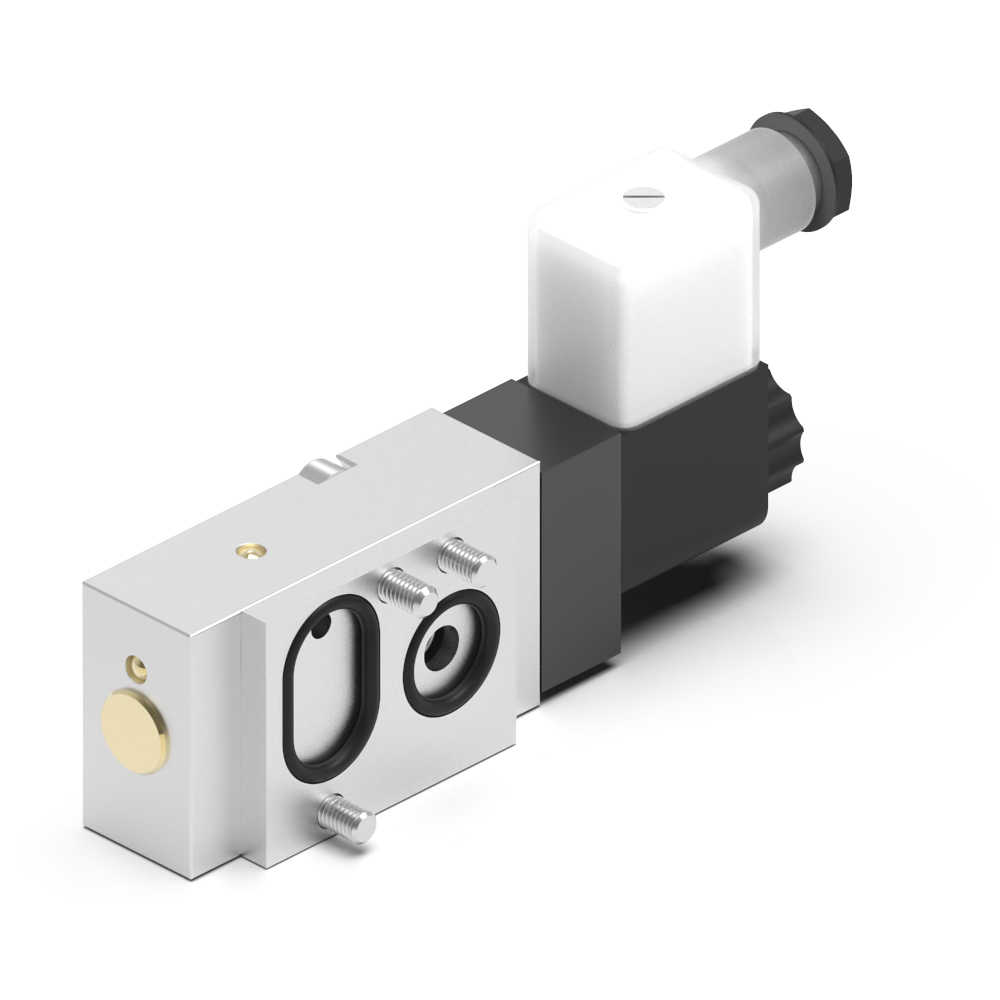

The Hafner MNH350 701 is a European-made NAMUR directional control valve with a proven design for demanding industrial automation. Delivered as a complete kit, it comes standard as a 5/2 valve for double-acting actuators, and includes a flex plate for easy 3/2 conversion—making it equally suited for spring-return actuators. Built with an aluminum body, manual override, and IP65 protection, it’s a compact, reliable solution for pneumatic actuator control.
Key highlights
- NAMUR 1 interface, G 1/4" – 3/2–5/2 FLEX configuration
- 2–10 bar operating pressure, for compressed air applications
- High flow capacity: 1250 l/min (6 bar, ΔP=1 bar)
- Fast response: 50 ms switching time (6 bar, +20°C)
- Complete kit includes coil, DIN connector, flex plate, and all mounting screws
