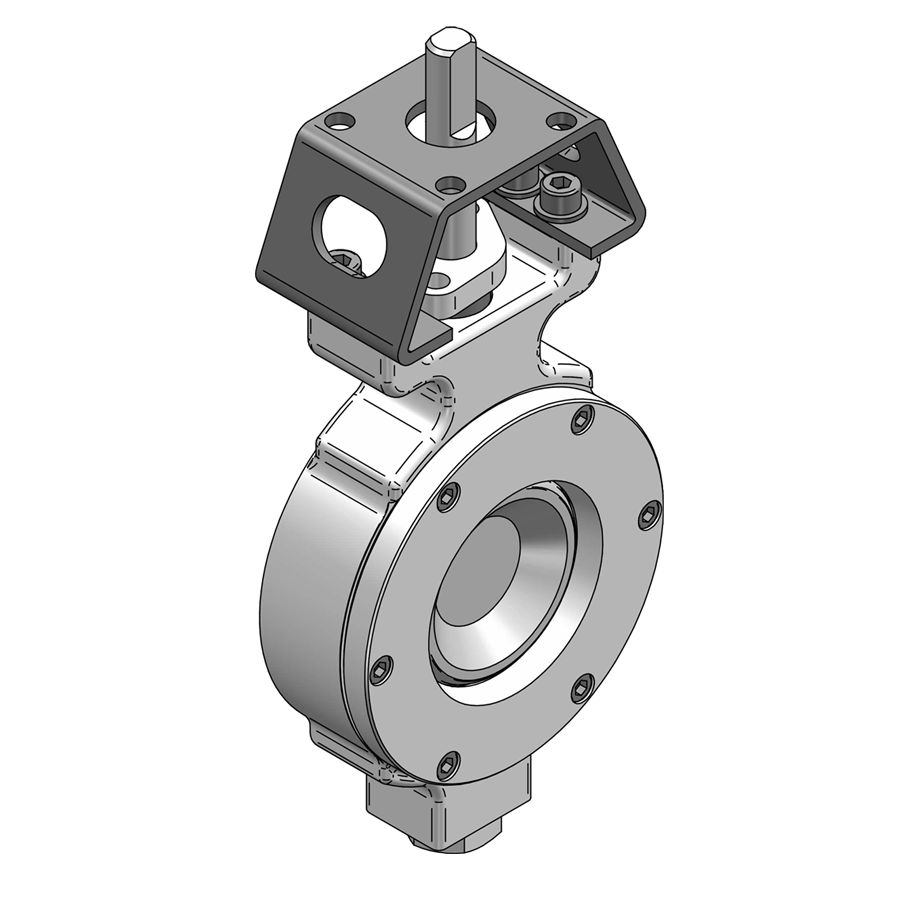

BFV S40-T468 DN80 PN16/ANSI150 WAFER

DBL-ECC CS/SS/17-4PH/RPTFE+INCONEL F07 DD11X16

Produktnummer:	BRA02436B
GTIN:	7053031105285
NOBB:	I/A
Kategori:	Spjeldventiler
Må bestilles	0 stk.

Beskrivelse

BRA02436B is Wafer, Double Eccentric Butterfly Valve with Size of 3in – 80mm and ANSI 150 Pressure. Body Material Carbon Steel ASTM A216 WCB, Disc Material Stainless Steel ASTM A351 CF8M, Stem Material Stainless Steel 17-4ph, Seat Material Plastic-based RTFE/Inconel.

Download Drawing
Download Brochure
Download Technical manual EN
Download Certificate

Spesifikasjoner

Tilleggsinformasjon

Pressure Rating	20 bar
Flange Drilling	PN10/PN16/ANSI 150
Face To Face Distance (Mm)	48
Trim Material	Stainless Steel
Trim Material Std.	SS 316 (CF8M)
Spindle Material	Stainless Steel
Valve Type	Double Eccentric
Spindle Material Std.	SS 630 (17-4 PH)
Seat Material Std.	RPTFE (RTFE)/Inconel 625
Features	Bare Shaft
Fire Safe	Certified
Sector	Industry
Serie	BRA S40-T468
Spindle Top	Double D
Spindle Top Size	DD 16 x 11
Size	80mm – 3"
Connection	Wafer
Body Material	Carbon Steel
Body Material Std.	C 22
Top	F07

BFV S40-T468 DN80 PN16/ANSI150 WAFER

Beskrivelse

Beskrivelse

Spesifikasjoner

Tilleggsinformasjon

Relaterte produkter

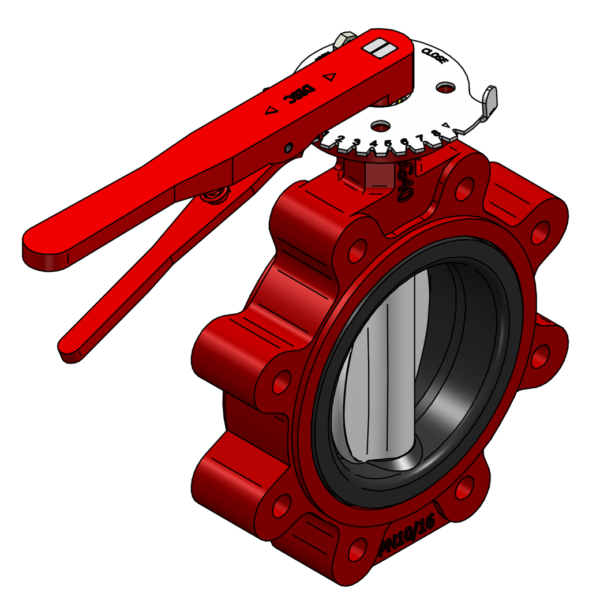

BF-VALVE DN300 PN10 LUG
