*SPJELDV S20 T126 M/D DN100 DIN WAFER

SETE: TEFLON MOULDED EPDM

Produktnummer:	BRA02253
GTIN:	7053031105056
NOBB:	I/A
Kategori:	Spjeldventiler
Må bestilles	0 stk.

Beskrivelse

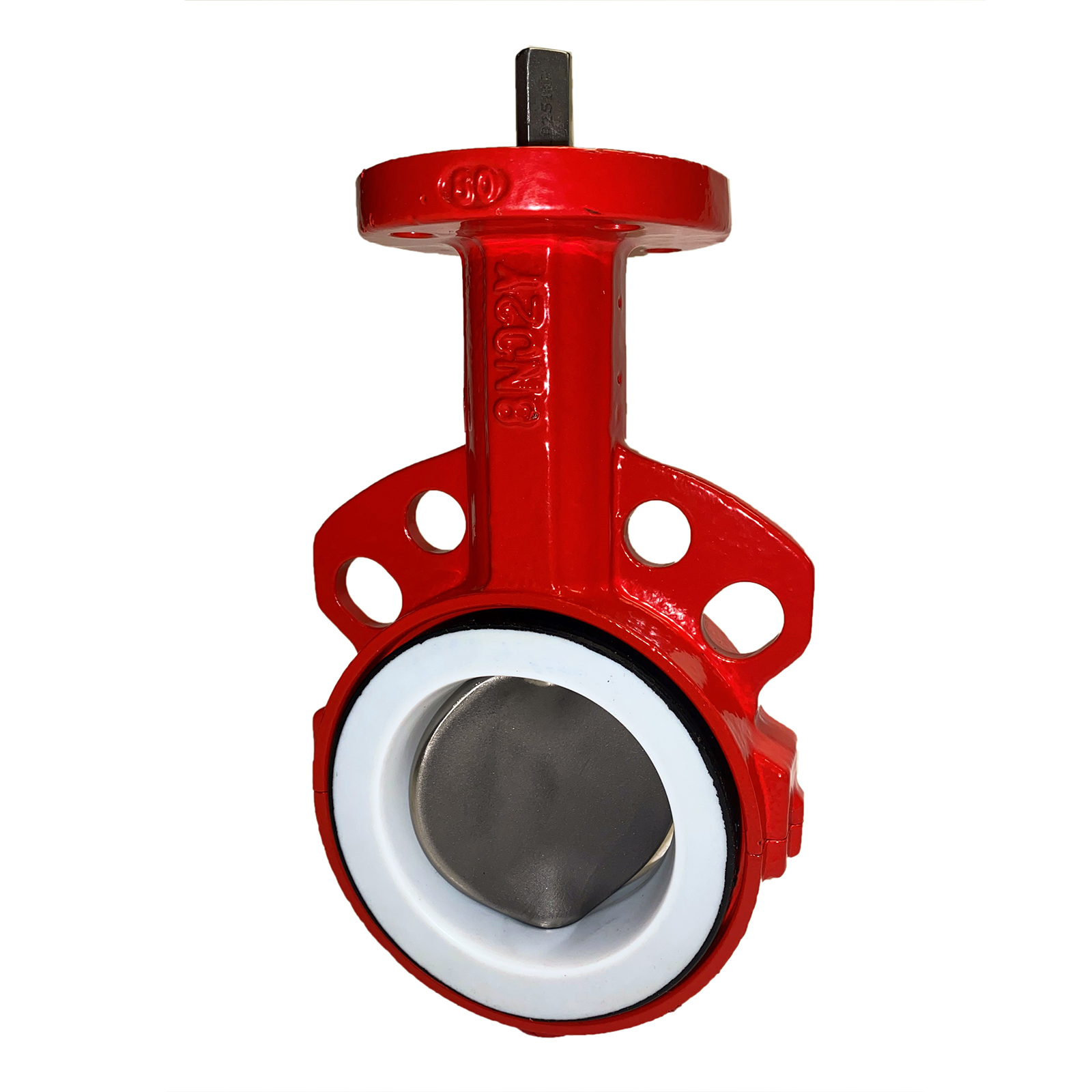

BRA02253 is Wafer, Concentric Butterfly Valve with Size of 4in – 100mm and PN10 Pressure. Body Material Cast Iron ASTM A126 B, Disc Material Stainless Steel ASTM A351 CF8M, Stem Material Stainless Steel ASTM A351 CF8M, Seat Material Rubber-based EPDM/TFE.

Download Drawing
Download Brochure
Download Technical manual EN

Spesifikasjoner

Tilleggsinformasjon

Size	100mm – 4"
Valve Type	Concentric
Pressure Rating	10 bar
Connection	Wafer
Flange Drilling	PN10/PN16/ANSI 150
Body Material	Cast Iron
Body Material Std.	GG 25
Face To Face Distance (Mm)	52
Trim Material	Stainless Steel
Trim Material Std.	SS 316 (CF8M)
Spindle Material	Stainless Steel
Spindle Material Std.	SS 316 (CF8M)
Seat Material Std.	EPDM/PTFE
Features	Bare Shaft
Sector	Industry
Serie	BRA S20-T126
Spindle Top	Double D
Spindle Top Size	DD 16 x 11
Top	F07
