BFV S30-T169 DN65 12BAR PN10/16/#150 WAFER

CONC. CI/316/416/EPDM DD10X14 F07

Produktnummer:	BRA01301
GTIN:	7053031103809
NOBB:	I/A
Kategori:	Spjeldventiler
På lager	3 stk.

Beskrivelse

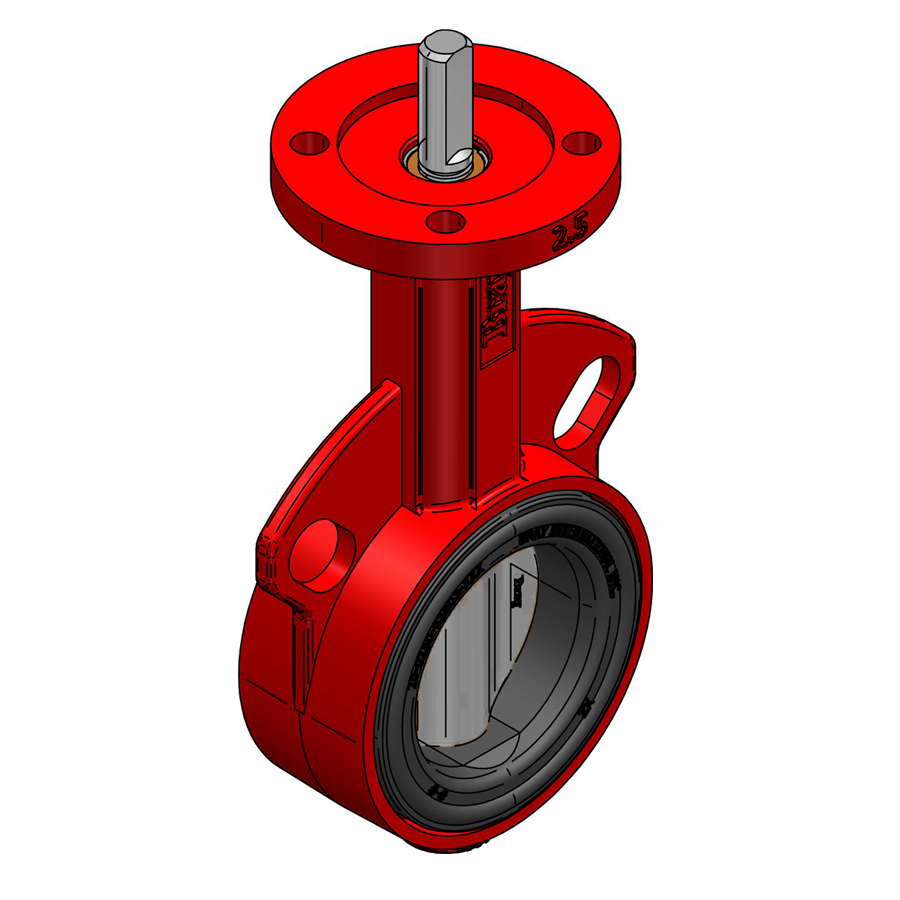

BRA01301 is Wafer, Concentric Butterfly Valve with Size of 2 1/2in – 65mm and PN10 Pressure. Body Material Cast Iron GG25, Disc Material Stainless Steel ASTM A351 CF8M, Stem Material Stainless Steel ASTM A582, Seat Material Rubber-based EPDM.

Download Drawing
Download Brochure
Download Technical manual EN

Spesifikasjoner

Tilleggsinformasjon

Size	65mm – 2 1/2"
Valve Type	Concentric
Pressure Rating	12 bar
Connection	Wafer
Flange Drilling	PN10/PN16/ANSI 150
Body Material	Cast Iron
Body Material Std.	GG 25
Face To Face Distance (Mm)	46
Trim Material	Stainless Steel
Trim Material Std.	SS 316 (CF8M)
Spindle Material	Stainless Steel
Spindle Material Std.	SS 416
Seat Material Std.	EPDM
Features	Bare Shaft
Sector	Industry
Serie	BRA S31-T169
Spindle Top	Double D
Spindle Top Size	DD 14 x 10
Top	F07
