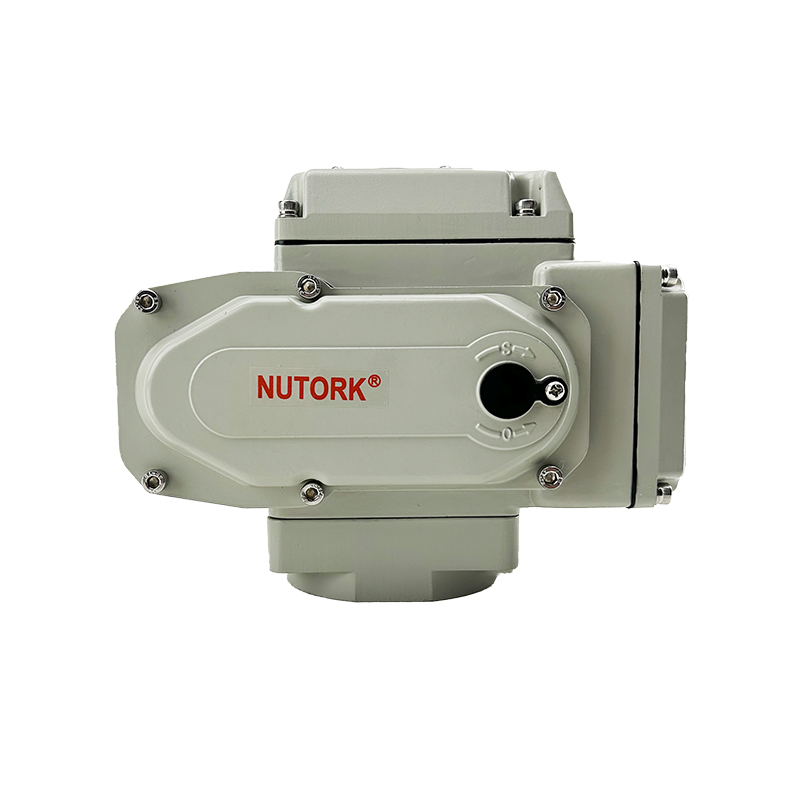

+Modulating EL Act. 10EB1AHTS, Aluminium body

IP67, heater, SPDT, Limit switch, ◇17×32-F05/F07

Produktnummer:	NUTNTE-M024-010-0100
GTIN:	7053031167825
NOBB:	I/A
Kategori:	Aktuatorer
Må bestilles	0 stk.

Beskrivelse

NUTNTE-M024-010-0100 is a Modulating EL Act. 10EB1AH, Aluminun body. IP67, heater, SPDT, Limit switch, ?17×32-F05/F07. 24VDC, 10S, 100Nm 4-20mA input/Feedback.

Download Brochure
Download Technical manual EN

Spesifikasjoner

Tilleggsinformasjon

Body Material	Aluminium
Body Material Std.	Die Cast
Construction	Wormgear & Drive Shaft
Actuator Type	Electric
Cable Entry	1 X M20
Function	Quarter-Turn/Modulating
Ip Rating	IP 67
Power	Electric
Torque Output	100Nm/10s
Valve Connection	F05/F07
Valve Spindle	SQR 17
Voltage	24V DC
